Afficheur Modbus écran tactile


  • 4.3”TFT-LCD touch panels
  • Resolution : 480 x 272 pixels
  • LED backlight
  • 32 silos can be displayed (4, 8, 16 or 32 silos per pages)
  • High luminosity, compact and rugged
  • Fan-less cooling system

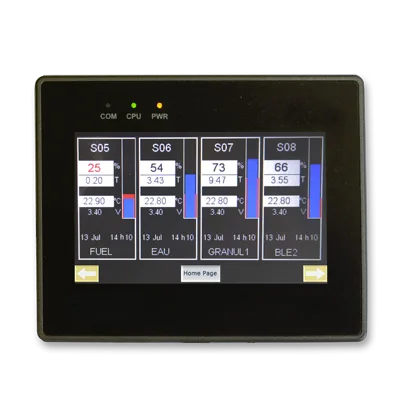

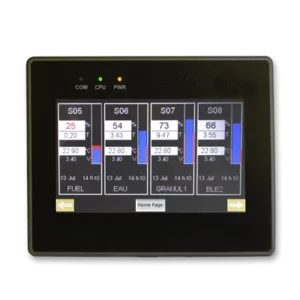

This device is a touch panel used to monitor silo or tank level. It uses a modbus connection as a master to retrieve data from a radio concentrator for example.

A user interface is available to set all the information needed to compute and display the level of each silos. (silo name, material name, dimensions, density)
Up to 32 silos can be displayed on panels including 4, 8, 16 or 32 silos.

A radio access point retrieve data from level sensors installed in the nearby silos, connected by Modbus RS485 to the touch panels to display all measurements.
The touch panel is easily programmable by the user

Levels and different critical thresholds of your silos to :

  • Optimize orders
  • Manage silos in real time
  • Eliminate risk of accidents
  • Stock traceability


Touch panel F0D00006


Features F0D00006

Power supply 19,2…28,8 VDC
Current consumption 7,2W max
Protection rating IP65
Operating temperature 0°C..+45°C
Storage temperature -20..+60°C
Mounting: 2 clamps to screw (supplied)

Dimensions :

Dimensions (l x h x w) 128 x 102 x 38 mm
Weight 300g

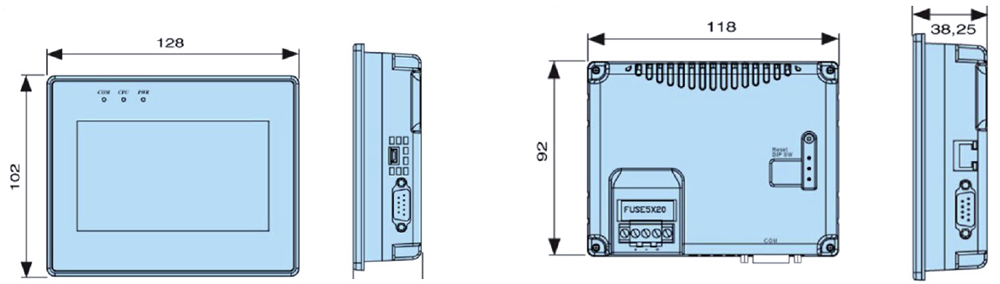

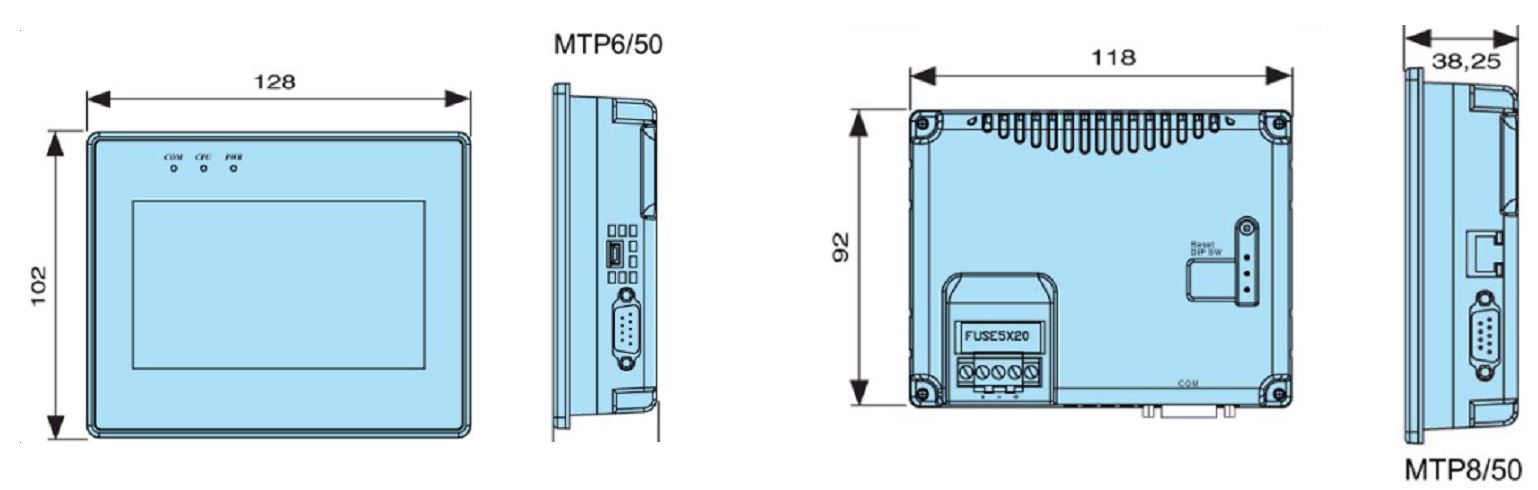

Dimensions touch display F0D00006
