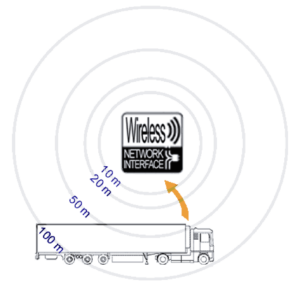

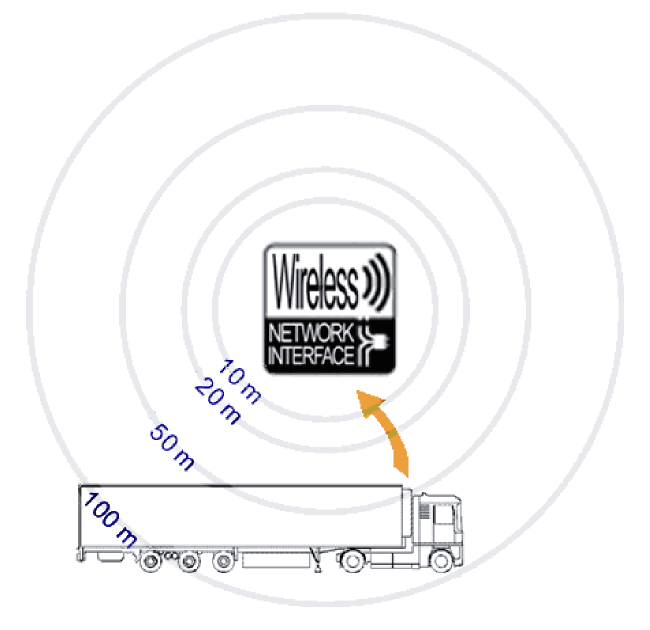

Wireless setting with Rfid technology, radio communication up to 100m
LT7 automatic data transfer of temperature and technical data, with access pointTemperature recorder for product traceability during deliveryTemperature data retrieved by radio during parking operations.

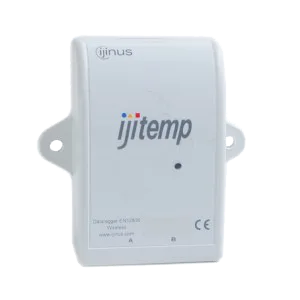

Temperature datalogger LT7-0-80

1,000.00

  • Autonomous, battery powered
  • Automatic data transfer
  • Big memory capacity
  • Wireless setting with Rfid technology
  • Sealing IP65 ou IP67

LT7-0-80 is a battery powered temperature recorder for the traceability of temperature sensitive products. It has automatic data transfer but you can also download data locally by radio with the connection kit.

This recorder is particularly suitable for dry and refrigerated transport applications. Its autonomy and operation principle reduce the cost of managing the traceability of temperatures.
In RFid mode you know, in addition to the temperature history if the vehicle or container is on area or not, and when it arrived or left the logistics area.
Wireless temperature datalogger LT7-0-80

This recorder is particularly suitable for dry and refrigerated transport applications, refrigerated warehouse and container. Its autonomy and operation principle reduce the cost of managing the traceability of temperatures. You are able to check by radio locally the temperature history.
A radio/3G access point can also be place on-site for a remote monitoring of your data. With this option you could get in addition to the temperature history if the vehicle or container is on area or not, and when it arrived or left the logistics area, all the alarms based on your thresholds can be sent by mail or SMS. Our web platform Ijitrack.com is very useful to manage your data, alarms, products, site location. Our Wiji App follow you wherever you are with real time data and notifications.





Wireless temperature data logger LT7-0-80

  • Refrigerated transport applications
  • Remote monitoring of sensitive products temperature
  • Remote monitoring of warehouse temperature in one or several area



Wireless temperature data logger LT7-0-80



Features LT7-0-80

Measuring range -10°C up to +85°C : ± 0.5°C
Classe 1
Accuracy -35°C up to +85°C : ± 1°C
Inertia : dT20°C=25
Resolution paramétrable :
0.5 / 0.25 / 0.125 / 0.0625
Real-time clock jj/mm/aa hh:mm:ss
Measuring periods from 5s up to 24h
Radio ping cycle from 1s up to 60s
Memory 50 000 measures
Recording types 2 modes : stop to full memory or FIFO
Recording start Direct or temporized
Addressing ID SN in 64 bits
Writing memory 16 files – 384 Ko
Radio 50 m in open fi eld-30dBm … +10dBm 915 MHz or 868 MHzCEM : ETSI EN 301 489-1 EN 55022 / EN 61000-4-3 / EN 61000-4-2
Certification EN 12830
Sealing grade IP67
Power supply Battery Li-SOCl 2EN 50020, 3 years (measuring every 5 min)

Dimensions :

Dimensions (HxLxP) 88 x 90 x 32 mm
Weight 150g

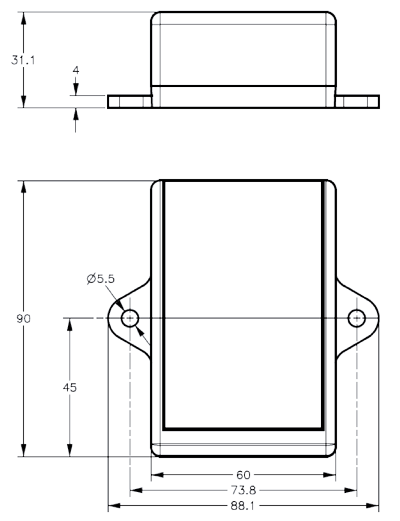

Dimensions temperature logger LT7-0-80 - Ijinus
