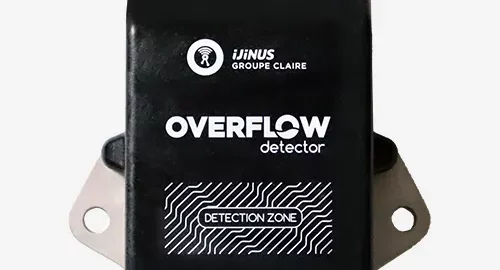

capacitif liquid level logger

Autonomous overflow logger LCSV4

This new overflow recorder is configured by Bluetooth Low Energy (BLE) using the OVERFLOW mobile app available on the Android Play Store. No activation on the detector is therefore necessary. It allows secure recording of spills, overflow even installed in the harshest environment. It has an internal memory and battery that allows even in the event of a power outage to log “200 overflow events”, to download them via the BT application and send report by email.

  • Configuration by Bluetooth BLE
  • Air-referenced capacitive technology
  • Monitoring of the logger fouling
  • IP68 enclosure grade
  • Dynamic threshold analysis
  • 200-event recorder, autonomy of over 5 years
  • Instrumentation of storm overflows, wastewater and natural water networks
BLZZRD Multi-Bottle Portable Refrigerated Sampler

ISCO BLZZRD refrigerated sampler

Teledyne ISCO Blzzrd is a portable refrigerated water sampler with active cooling from either AC or battery power. Its controller offers all advanced controls, interfaces, data logging, and remote communication features.

  • Standard and extended programming keeps setup simple when you don’t need advanced features
  • Wide range of bottle configurations
  • Safe and convenient transporting
  • Programming is fast and simple
  • Patented pump revolution counter ensures accurate sample volumes and tells you when tubing should be replaced
  • Liquid detection sensor
  • The IP67 controller enclosure is watertight and dustproof
To connect to level sensor, logger or pump

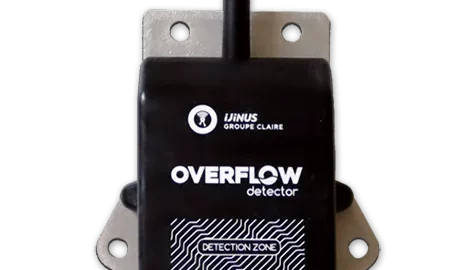

OVERFLOW water level detector

  • Air referenced capacitive technology
  • Settings configuration via Bluetooth BLE using the OverFlow mobile App.
    No activation of the detector is required.
  • Modbus output, pulse open drain, NO, NC
  • Secure spill recording even in the event of a power cut, thanks to battery and internal memory for 100 events
  • PLC and process compatible
  • Management and monitoring of sensor fouling
  • IP68 grade housing
  • Instrumentation of storm water overflows, wastewater and natural water networks

Data can be manually downloaded by Bluetooth Low energy (BLE) to a mobile phone that’s near the manhole where the detector is located, using the OverFlow App. This reduces the need for confined space entry and traffic control.

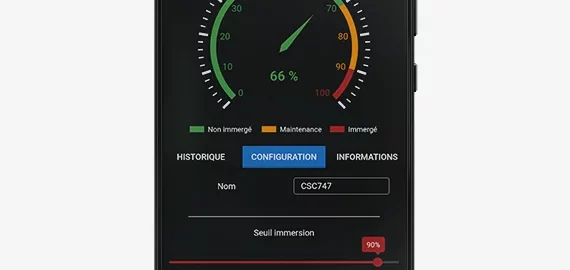

Overflow mobile App

App Overflow IconOverflow mobile App: full of features

Download our new App Overflow from the Android Play Store

soon available on App Store. It allows the configuration and control of our new Overflow detector

Direct connection to overflow detector by Bluetooth Low Energy (BLE)
(without manual activation on your part on the detector)
Access to overflow status and essential sensor informations.
Configuration of the overflow, its name, immersion threshold, period of
measurement, minimum number of values before triggering, digital output.
Data export: download history and data to your mobile, export by email.

Bouton vers Google Store User guide download link

Pulse and flow logging

BLUE – Pulse and flow logger with Modbus 4-20mA 4G

  • Drinking water network diagnostic loggers
  • Battery powered, 500 000 data memory
  • 2x digital contact inputs or counter 100 Hz max (Ready for 4 digital inputs),1x RS485 Modbus,2x 4-20mA inputs
  • 1x open collector output, 1x Modbus RS485
  • Wireless configuration and data collection via radio. Available templates in Avelour software
  • 2G/4G (LTE-M / NB-IoT) / LoRaWan communication options to send data to Ijitrack.com or your server.
  • IP68 housing : 2m / 100 days
  • Excel report

This compact battery powered data logger allows you many water network applications (pulse count, Modbus flow meter, 4-20mA, external pressure sensor, …)

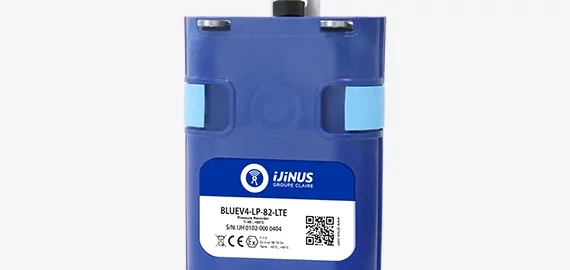

Water flow, counter, internal pressure logger

BLUE-LP flow logger with built-in pressure sensor 0-25 Bar

  • Drinking water network diagnostic loggers, 500 000 data, autonomous
  • Quick and easy installation
  • Built-in absolute pressure sensor 0-25 bar, quick coupling connector, drinking water certification : NSF/ANSI 61/372 – MH60087
  • 2x digital contact inputs or counter 100 Hz max (Ready for 4 digital inputs),
    1x RS485 Modbus
  • 1x 4-20mA input, 1x open collector output, 1x Modbus RS485
  • Wireless configuration and data collection via radio
  • 2G/4G (LTE-M/NB-IoT) or LoRaWAN communication options to Ijitrack.com or your server (secure protocol or .CSV)
  • IP68 housing : 2m / 100 days
  • Excel report

The most versatile logger on the market.. Battery powered and compact, this data logger allows you to record many different parameters (pulse count, Modbus flow meter, 4-20mA, another pressure sensor, …)

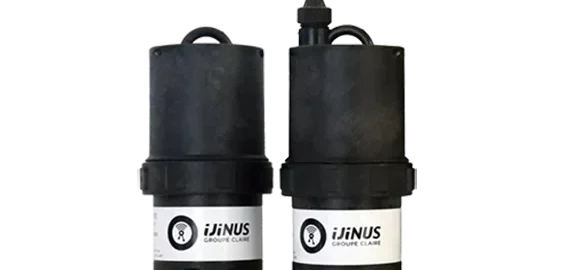

Battery powered radar level sensor LNR06V4 with radio & cellular communication

LNR06V4 – Battery powered radar level sensor

  • Radar water level sensor LNR06V4 measures up to 6 meters
  • Wireless radio configuration for ease of use and security
  • Battery powered with long autonomy, memory of 500 000 measurements
  • Communication: local by radio + 1 optional card 2G / 4G (LTE-M – NB-IoT)
  • Compact and robust, it is thus more discreet and ensures a reduced visual footprint in the natural environment.
  • This sensor is not impacted by particular exposures such as wind or temperature variations
  • Inputs : 1x External power supply (5Vcc…30Vcc), 2x contacts 100Hz, 1x Modbus
  • Outputs : 1x Power supply (internal battery or switch), 1x Open Drain, 1x Modbus
  • Rugged and fully waterproof : IP68 housing tested at 1 bar during 30 days
  • Integrated conversion tables (height, flow, volume)

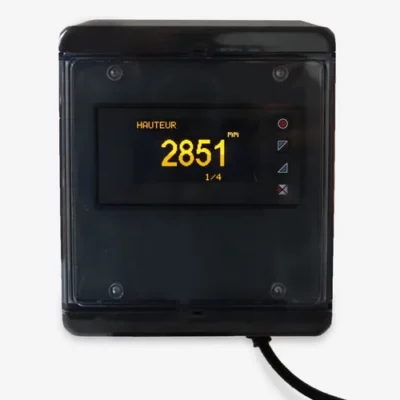

  • This water level sensor is compatible with the portable display F0D00020
  • Avelour version 7 minimum version required with the new LNR06V4 radar level sensor

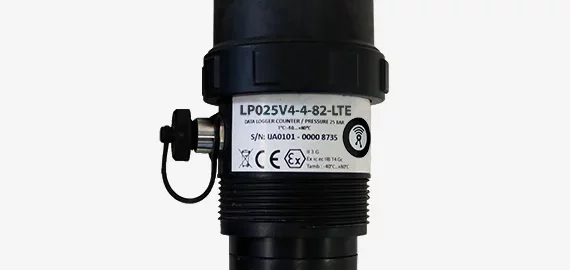

Data logger with internal pressure sensor 0-25 Bar

LP025V4-4 Logger with built-in pressure sensor to rent

Compact and battery operated logger enabling a rapid pressure measurement without the risk of interfering with the use of the drinking water system.You can also connect this pressure logger to a flowmeter as well as a pulse counter.

  • Quick and easy installation
  • Autonomous in energy and communication
  • Internal pressure sensor 0-25 bar
  • Quick coupling adaptor to connect fire hose cap, or water pipe
  • 2x digital inputs contact or counter 100 Hz
  • 1x RS485 Modbus interface (either input or output)
  • 1x open collector output
  • Option de communication 2G / 4G (LTE-M / NB-IoT)
  • Configuration by radio on-site, communication option 2G/4G (LTE-M / NB-IoT)
  • Excel report
  • IP68 housing : 1 bar / 30 days
  • Drinking water certification : NSF/ANSI 61/372 -MH60087

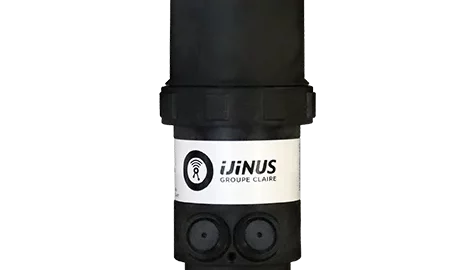

Autonomous radar level sensor  2G / 4G

LNR06V4-LE Battery powered radar level sensor

  • Version of the LNR06V4 radar sensor without connector
  • All-in-one level sensor for liquid with built-in radar probe, long-life battery, logger, and data transmission
  • LNR06V4-LE radar sensors measure up to 6 meters of water height
  • Wireless radio configuration for greater ease and safety of use
  • Logger memory of 500,000 data
  • On-site radio communication (configuration, data download and config file) + 1x optional 2G/4G communication card (LTE-M – NB-IoT) for sending data remotely
  • Waterproof IP68 (1 bar/30 days)
  • 2-axis accelerometer to check the correct positioning of the sensor
  • Integrated conversion tables (height, flow, volume)

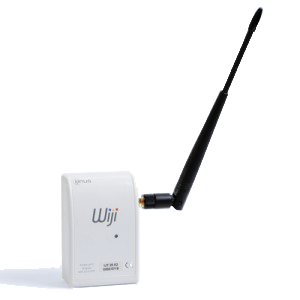

App Wiji

Wiji, the new Ijinus mobile App



3 main features:

Configuration of sensors and loggers in Ijitrack.com
Visualization of the last data
Alarm management
Photo of your installation sites to easily found them later

Download our Wiji App from the App Store for you IOS device, and from the Google Play Store for Android mobiles, It will help you to quickly configure your sensors and data loggers on site to your Ijitrack account.
Available on mobile phone & tablet

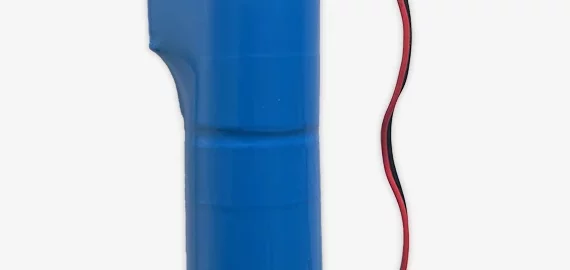

Lithium Batttery A0G00030

Lithium battery A0G00030



Lithium batteries compatible with Ijinus sensors and data loggers from the following ranges :

  • LNR06V4 radar water level sensor

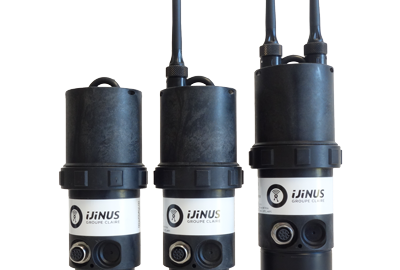

  • Ultrasonic water level sensor from the LNU06V3 / LNU06V4 range
  • Multi-applications data loggers LOG V3 and LOG V4
  • LOGAZV4 and LOGAZPROV4 H2s data loggers
  • Flow loggers with built-in pressure sensors BlUE-LP

These A0G000030 batteries can also be found in the A0I battery packs

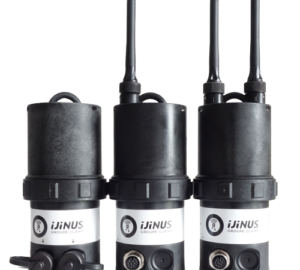

Multi Applications, battery powered data loggers V4

Wireless Data Logger LOG V4

  • Multi Applications autonomous data loggers
  • Wireless setting by radio (Wiji protocol)
  • Remote configuration
  • Communication : locally by radio + an optional communication card:
    2G/4G (LTE-M or NB-IoT)
  • Enhanced security: FTPs data encryption (TLS)
  • Greater autonomy, sealing grade IP68 (1 Bar/30 days)
  • Memory : 500 000 measures
  • Battery powered loggers
  • Sealing IP68

New generation of LOGGERS V4 for water network monitoring. Multi-application loggers, customisable to your needs

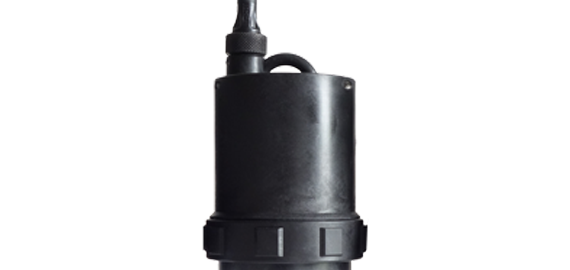

LOG03V4 battery powered logger 4/20 mA

LOG03V4 – Wireless loggers 4-20mA – Digital

  • Multi Applications, battery powered data loggers
  • Wireless setting on-site by radio
  • Communication : Radio + 1 optional communication card 2G / 4G (LTE-M, NB-IoT)
  • Access point radio / cellulaire (with nearby ijinus sensors)
  • 1x power supply input (5V…30V), 2x 4-20 mA inputs, 2x digital inputs (Contact or counter 100 Hz)
  • 1x voltage output 5V-18V or Switch Vin, 1x open drain output
  • Housing sealing grade IP68 (1bar / 30 days)

The LOG03V4 logger has a long-life battery and communication options such as GSM-GPRS, FTP, FTPS (2G, LTE-M, NB-IoT), depending on model. The configuration is done quickly and safely on site by radio. This portable data logger allows, among other things, applications in storm overflow, underground water resources, monitoring of lift stations, rainfall, …

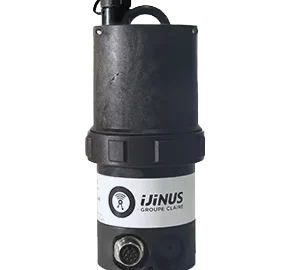

LOG04V4 multi applications data logger - 2G / 4G & Autonomous

Wireless Data Loggers LOG04V4 –Modbus -Digital

  • Autonomous multi Applications data loggers
  • Wireless setting on-site by radio
  • Communication : Radio + 1 optional communication card 2G / 4G
  • Access point radio / GPRS (with nearby ijinus sensors)
  • 1x power supply input (5V…30V)
  • 1x Modbus input or output
  • 2x digital inputs : Contact or counter 100 Hz
  • 1x power supply output 5V…18V (for external sensor)
  • 1x open drain output
  • Sealing grade IP68 (tested at 1 bar / 30 days)

This logger allows, among other things, applications for storm overflow monitoring, flow measurement, underground water resources monitoring, lift station monitoring, water quality monitoring with physico-chemical sensors, …

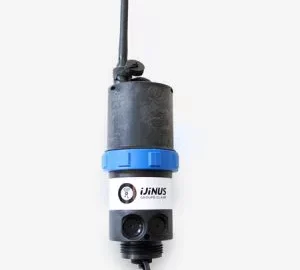

Battery powered data logger LOG09V4

LOG09V4 – Wireless Data Loggers 4-20 mA – Modbus

  • Battery powered data loggers LOG09V4
  • Wireless setting on-site by radio (Wiji protocol)
  • Communication (selon modèle) : Radio + 1 optional communication card 2G / 4G (LTE-M / NB-IoT)
  • Access point radio (with nearby ijinus sensors) / Modbus / cellular
  • 1x power supply input (5V…30V)
  • 1x Modbus input or output
  • 2x 4-20 mA analog inputs
  • 1x power supply output 5V…18V for external sensor (Internal battery or Switch)
  • 1x open drain output
  • Sealing grade IP68 (1 bar / 30 days)

The new LOG09V4 logger is quite efficient and allows various applications. Fully autonomous with its internal battery you can connect many types of sensors thanks to its 4-20mA and Modbus inputs/outputs

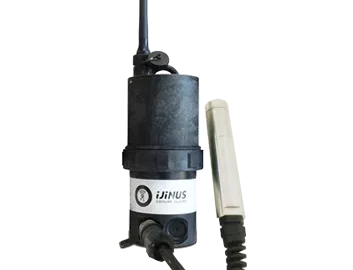

Data logger for water quality probes

Data logger & physico-chemical probes

Available sensors :

  • Dissolved oxygen / Temperature : CAN-OX
  • Conductivity / Salinity / Temperature : CAN-CE
  • Inductive Conductivity / Salinity / Temperature : CAN-CZ
  • pH / ORP / Temperature  : CAN-PH
  • ORP potential / Temperature : CAN-ORP
  • Turbidity NTU-mg / l / Temperature : CAN-TU

Digital technology for optimized measurement
The all in one solution multi-parameters : data logger, physico-chemical probes, GSM / GPRS

– Integrated GSM for remote monitoring or on-site data retrieval by radio
– Data logger 400,000 measurements
– Quick and easy installation
– Reduced maintenance
– Battery pack available
– Battery life power > 5 years: a measurement / 15 min and 1 sending GSM / day
– Simplified on-site calibration

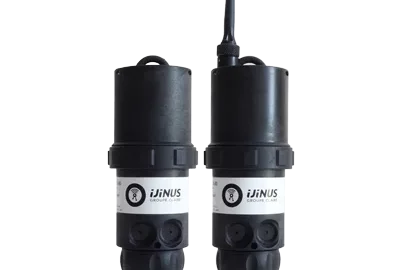

LOGAZ-H2S-2000, autonomous logger with radio and 2G/4G communication

Wireless H2S sensor LOGAZ-H2S

  • H2S gas measuring range 0-2000ppm
  • Wireless setting with Rfid technology for your security
  • Communication : local only by radio 2G / 4G (NB-IoT, LTE-M)
  • Memory : up to 500 000 measures
  • Logger enclosure rating IP68
  • H2S Gas cells interchangeable on-site
  • Cell accuracy : ±5%
  • Replaceable lithium battery

This new sensor integrates a logger, communication, energy, the H2S gas sensor while maintaining a long autonomy. The measurement is performed by an electrochemical cell, the measuring head is easily interchangeable on-site and embarks its calibration.

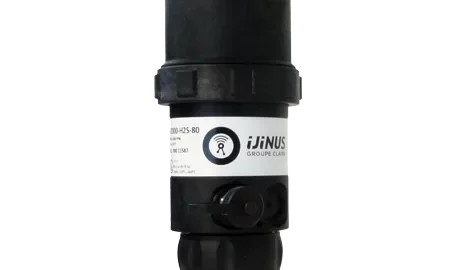

LOGAZPRO-H2S data logger with Modbus output

H2S logger with process output LOGAZPRO-H2S

  • Measuring range : 0-2000ppm
  • Wireless setting by radio, no activation needed on the device
  • Outputs : 4-20mA and/or Modbus RS485
  • Memory : up to 500 000 measures
  • H2S gaz cell changeable on-site
  • Logger enclosure rating IP68

This logger integrates the H2S sensor and some outputs so-called process like 4-20mA and Modbus RS485.

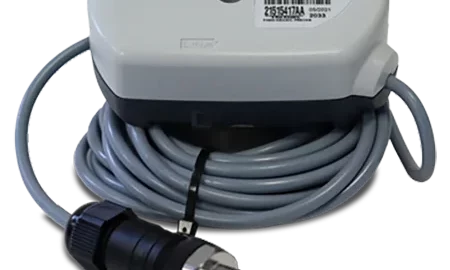

Pulse unit for Itron water meter

Itron Cyble sensor V2 pulse unit

  • Quick and easy installation on Itron water meters
  • 1 pulse = 1L or 10L depending on meter size
  • Internal battery, minimum life of 12 years
  • Configuration template in the Avelour software
  • Small dimensions and IP68 protection
  • Connected to a Blue logger:
    • On-site radio configuration and reading, integrated 2G / 4G (LTE-M/NB-IoT) communication card option
    • Hourly and daily totals
    • Calculation of night flows (avg, min, max)

Pulse emitter for acquiring water metering data. Combined with a Blue logger, or Blue-LP (Logger with integrated pressure sensor) data can be transmitted by radio locally or to the SCADA software using 2G/4G (LTE-M/NB-IoT).

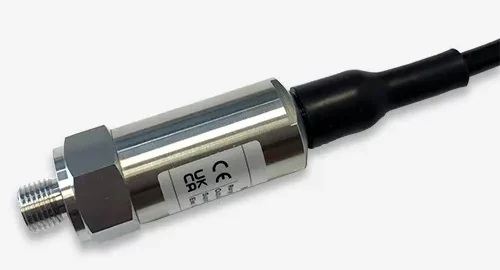

Pressure sensor 0-16 bar for Blue loggers

Pressure sensor 0-16 bar CPAB-EP-16 for Blue loggers

  • Measuring range 0-16 bar
  • 4-20mA output signal
  • Compact design, M12 12Pts connectorized cable
  • Available in 1.5M or 20M cable versions
  • Water-resistant sensor: IP68
  • Compatible with Blue-LP / Blue loggers
  • ACS-certified product: suitable for drinking water

The 0-16 bar pressure sensor is easy to install thanks to its 1/4 gas connection. The Blue and Blue-LP loggers for drinking water applications are connected via its 12-pin M12 connector. Configuration is carried out locally by radio by connecting to the logger. For data loggers fitted with an integrated communication card, data are sent automatically by 2G/4G (LTE-M, NB-IoT) to our web platform Ijitrack.com, or to your server/SCADA software.

Level probe 0-3m to 0-25mH2O

Water level sensor CNRB-EP for Blue logger

  • Measuring range from 0-3m à 0-25mH2O
  • Integrated atmospheric pressure aerator
  • 4-20mA output signal
  • Compatible with Blue / Blue-LP loggers (M12 12Pts connectorised cable)
  • Certified ACS: suitable for drinking water

Easy-to-install water level sensors. 4-20mA connection to BLUE and BLUE-LP drinking water loggers.
Drinking water level sensor configuration and data download locally by radio (when connected to the logger). Data export to our web-based platform Ijitrack.com or your own server / SCADA.

Monitoring web plateform web for your data

Ijitrack.com

Monitoring and management in real-time of your data

  • Remote monitoring of water, wastewater and natural water networks
  • Web-based interface to monitor all your data, manage your customer accounts or groups, export your data in detailed reports
  • Simple and intuitive interface, free IOS & Android mobile app
  • Configuration of sensors on the installation site for your Ijitrack account
  • Secure access to data
  • Visualization of measurements displayed in the form of a dashboards, tables, multi-curve graphs, network map

Ijitrack allows you to generate alarms on level, overflow, flow rate and other parameters. For each alarm you can set a high and a low threshold. The alarms are visible on ijitrack.com and the mobile App. They can be transmitted by E.mail, SMS. The Wiji App helps you to quickly configure your sensors and loggers on your Ijitrack account.

Software Avelour 7 - Ijinus

Configuration software Avelour 7

  • Instant radio connection of sensors and loggers nearby
  • The intuitive interface adapts to the connected sensor
  • Quick configuration provides the step by step configuration
  • Recapitulation summary
  • Multi curves display of your data
  • Back-up are available for both data and settings
  • Work safely by staying away from your measurement points
  • Whole configuration of a sensor can be saved as template and paste into others

Operating principles are the same for all devices :
Part of our connection kit, Avelour allows to connect to various Ijinus devices on-site by radio, to set, retrieve and display data, but also to export them in various file formats.

Connect several equipments to your Blue logger

G0D00051 Junction Box FOR BLUE loggers



Multi-application splitter allowing connection of a BLUE or BLUE-LP drinking water network diagnostics logger to compatible equipments :

  • Water meter or pulse unit,
  • Electromagnetic flowmeter via Modbus,
  • 4-20mA sensors, battery pack…)
  • Pressure sensor,
  • Level sensor,
  • Water quality probe,
  • External power supply,
Ultrasonic level sensor with on-site radio communication and GSM / GPRS

LNU06V3 Battery powered level sensors with wireless communications

  • Measuring range of 0,3 … 6m (0.98 – 20ft)
  • Wireless setting with Rfid technology
  • Communication options : GSM / GPRS / 3G / Sigfox
  • Inputs : 1x voltage (7V…30V), 2x Contacts 1Hz, Modbus
  • Outputs : 1x switch, 1x open drain, Modbus
  • Memory : 500 000 measures
  • Lithium battery powered, low-power consumption
  • Rugged, compact, sealing IP68

The LNU06V3 are our new versions of level sensors, particularly suitable for liquid measurement in harsh environment. They integrates a logger, a long life battery and communication options making it fully autonomous. Easy to use and install, the setting is done safely by radio without need of activation.
