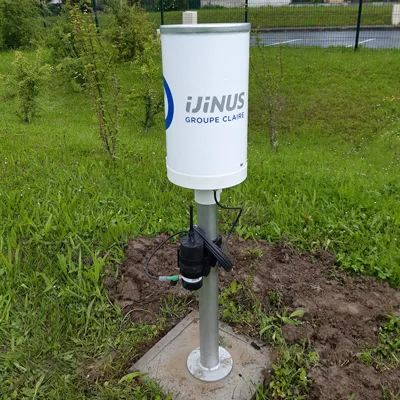

Battery powered Logger radio/2G/4G connected to a rain gaugeAutonomous-logger-LOG03V4-LTE-with-pressure-sensorData tranfer by radio locally or 2G/4G

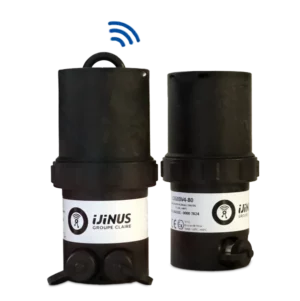

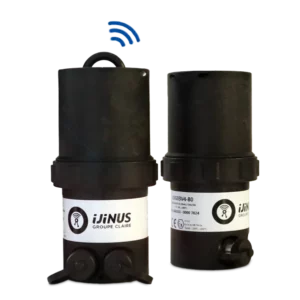

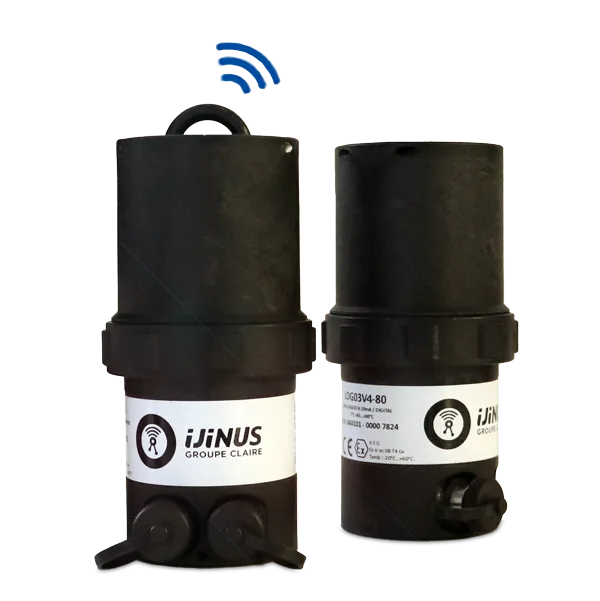

LOG03V4 – Wireless loggers 4-20mA – Digital

  • Multi Applications, battery powered data loggers
  • Wireless setting on-site by radio
  • Communication : Radio + 1 optional communication card
    2G / LTE-M / NB-IoT
  • Access point radio / GPRS (with nearby ijinus sensors)
  • 1x power supply input (5V…30V)
  • 2x 4-20 mA inputs
  • 2x digital inputs : Contact or counter 100 Hz
  • 1x voltage output 5V-18V or Switch Vin
  • 1x open drain output
  • Sealing grade IP68 (1bar / 30 days)
  • The LOG03V4 is a stand-alone logger with built-in long-life battery and communication options such as GSM-GPRS, FTP (2G, LTE-M, NB-IoT), depending on model. The configuration is done quickly and safely on site by radio. This portable data logger allows, among other things, applications in storm overflow, underground water resources, monitoring of lift stations, rainfall, …

Wireless data loggers LOG03V4

These multi application loggers allow you to work on different applications such as:
– CSO monitoring (Overflow detector CSCV3)
– Lifting station monitoring (Current clips F0A00066) and F0A00046)
– Groundwater resource (Level pressure sensor CNR)
– Rainfall (RG20 and RG25)
– Water height/Flow with pressure sensors (Sensor range CNR)

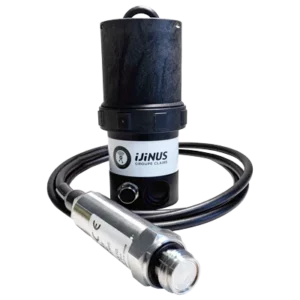

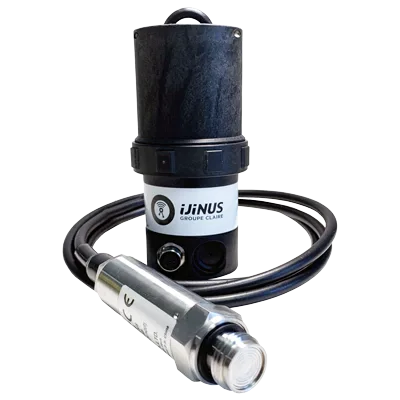

– Pressure on drinking water pipes (Sensor range CPA)
– Inclinometer sensor (F0T00002)
– Other sensors with 4-20mA output
– Flow measurement on drinking water network (connection by 4-20mA on electromagnetic flowmeter)
– Metering of drinking water (connection to flowmetter via a pulse unit)

Radio communication and configuration
These data loggers are configured locally by radio (direct connection, no need of activation on the logger) using a HF/USB programming kit to connect to your laptop. This kit also includes the Avelour software offering quick and easy configuration at each step (measurement period, threshold, conversion, data sending …)

Communication by 2G / 4G (LTE-M / NB-IoT)
The LOG03V4 logger measures and records up to 500,000 measurements. It can retrieve data from other Ijinus sensors and loggers present nearby. It will then send all its data to the SCADA according to the chosen transmission mode 2G/4G (LTE-M / NB-IoT)
By choosing a logger with an integrated modem, you can send your data directly to our web platform www.ijitrack.com, or any other server with your SCADA

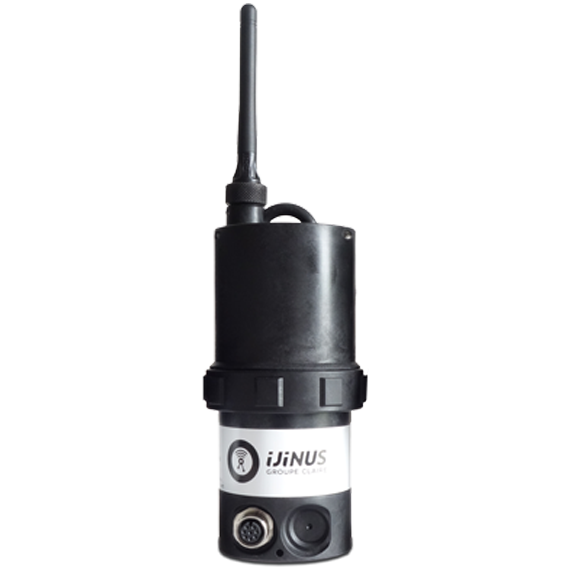

Data logger LOG03V4

Logger memory 500 000 measures
Access point Yes
Inputs 1x power supply input (5V…30V), 2x 4-20 mA, 2x digital inputs : contact or counter
Outputs Radio HF (868 or 915 MHz),
2G / LTE-M / NB-IoT
1x voltage output 5V…18V (2W max with internal battery) or Switch Vin, 1x open drain output
Radio communication 100m in its wireless range (Wiji protocol)
Antenna : radio / cellular Internal or external radio antenna – External for cellular antenna
See configurator for options
Operating temperature -40 …85°C
Housing PA12
Sealing IP68 (Only if an Ijinus bracket is used (PN : H0T00053 or H0T00060), sensor connected to the logger connector
Bat : 3,6V 34Ah
Wireless programming kit (PN : M0C0000x), includes the software AVELOUR


Dimensions :

dimensions Ø 74 x 160mm (without antenna)
Net weight 302g
dimension L0G03V4
