Pluviomètre à auget RG20, enregistreur autonome, et pied à visserMécanisme à augets basculantsBattery powered Logger radio/2G/4G connected to a rain gauge

Tipping bucket rain gauge RG20

Rain gauge with battery powered logger, transmitter

  • Tipping bucket rain gauge
  • Resolution of 0,2 mm
  • Data logger communication to choose from / HF / GSM / GPRS / 2G / 4G
  • Web monitoring platform and mobile App available
  • Easy to install and set up
  • Data retrieval on site by radio (RFID)
  • Timestamp or accumulated precipitation operation, temperature
  • Export data to Csv, Excel or HTML
  • Several supports options are available

The RG20 rain gauge is connected to one of our portable and compact data logger LOG V4 which allows local data retrieval by radio communication, or it automatically sends them by GPRS to your your server in .CSV or compatible SCADA software such as Areal Topkapi, Lerne, Dev I/O, Floee, or our web monitoring platform Ijitrack.com.

Tipping bucket rain gauge RG20

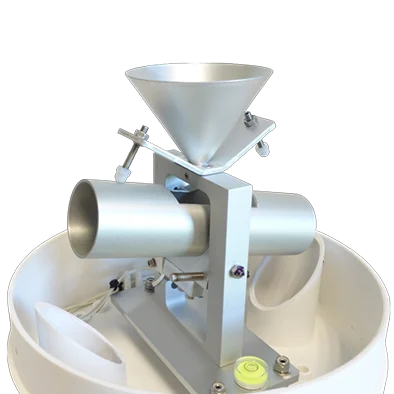

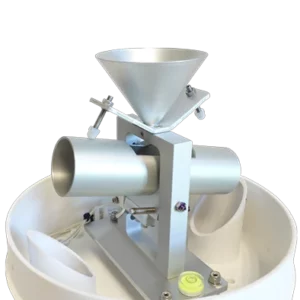

The sensor is made up of a funnel collector and a couple of calibrated collecting containers (tipping buckets). The calibrated collector area and the geometry of the collector prevents the rain from splashing in and out, according to WMO recommendations (World Meteorological Organization). Every time a bucket is filled, the instrument outputs an electrical signal that can be sent to an automatic data acquisition system. If precipitation is in a solid form, snow or hail, the instrument can measure the amount of water obtained from their melting.

Compatible data loggers

The rain gauge RG20 have to be connected to a data logger from the LOG V4 range by its M12 connector. It has a memory of 500 000 measures, communication options to define :

The loggers are multi applications and have their own configuration application templates :

  • LOG03V4 (4-20mA – DIGITAL) : Groundwater resources, CSO / SSO, Flow using pressure probe, Lift stations, Access point Hf/GPRS, …
  • LOG04V4 (Modbus RS485 – DIGITAL) : Area-Velocity Flow, CSO / SSO, Access point HF/Modbus/GPRS, Lift stations, Water quality, …
  • LNU06V4 (RS485 / Digital inputs / 4G) : Ultrasonic water level sensor, CSO / SSO, Access point HF/Modbus/GPRS, Lift station, Water quality, …
  • LNR06V4 (RS485 / Digital inputs / 4G) : Radar water level sensor, CSO / SSO, Access point HF/Modbus/GPRS, Lift station, Water quality, …

Accessories :

A configuration kit such as the Wiji USB/HF stick (Wiji USB/HF stick) allows to connect by radio to the rain gauge logger and set the configuration, and also to download on-site the data.

Stainless steel support and tube to screw Øext. 60.3mm, Length : 658MM

Tube to plant Øext. 60.3mm, Length : 658MM

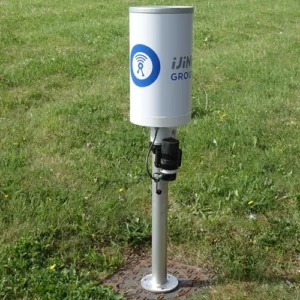

Logger bracket on the raingauge tube support





Rain gauge RG20 features

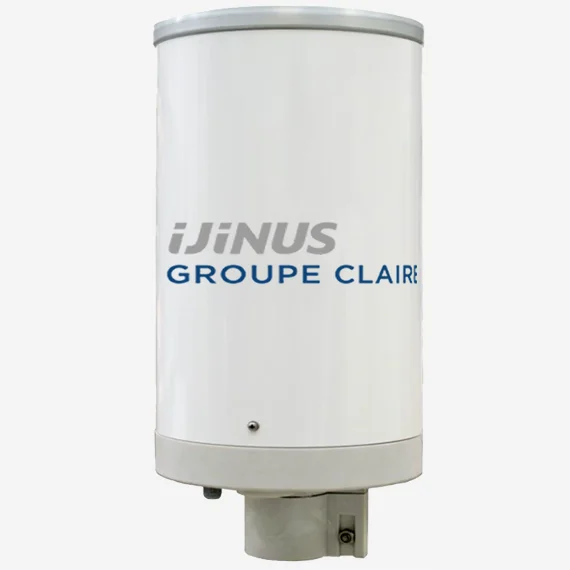

Rain gauge RG20

Sensor Type Anodized aluminum tipping bucket with double reed switch
Collector Area 400cm²
Measuring Range 0 … 300mm/h
Accuracy <1% @ rain intensity of 30mm/h
<2% in the measuring range 20 … 40mm/h
<3% in the measuring range 10 … 50mm/h
Resolution 0,2mm
Levelling Level on the bucket assembly
Output Double contact 3 wires (on request single contact NC or NO), 1 pulse is equivalent to 0.2mm of rain
Operating temperature 0…+70°C; -30…+70°C (with heater system)
Maintenance Scheduled cleaning (suggested every 6 months)
Calibration Calibration of the bucket assembly suggested every 2 years
Compatible data Loggers and accessories
LOG03V4
LOG04V4
LNU06V4

LNR06V4
Battery powered loggers and water level sensors, IP68, memory of 500 000 measures, short range radio communication and options to send data remotely using 2G / 4G
G0A00053 Support :Stainless steel support and tube to screw Øext. 60.3mm, Length : 658MM
H0T00055 Tube to plant Øext. 60.3mm, Length : 658MM



Dimensions :

Dimensions Ø 230 mm x H 480 mm
Weight 3,5 Kg

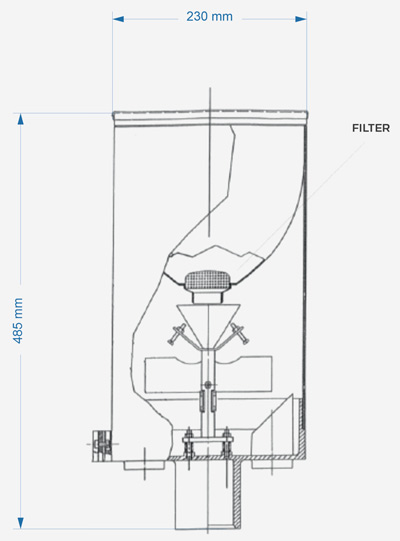

RG20 dimensions



Rain gauge RG20 documentation
