USB stick used for the loggers configuration
The configuration kit includes the software AvelourWe continuously update the software Avelour 7

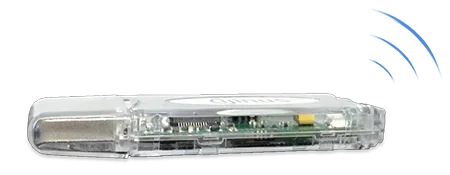

Programming kit USB/HF key

  • The kit includes an USB / HF key  and the software Avelour 7 in its full version and latest release
  • Instant connection with the nearby sensors
  • The intuitive interface adapts itself to connected sensor
  • Assisted and fast setting, consolidated summary
  • Backup data and settings

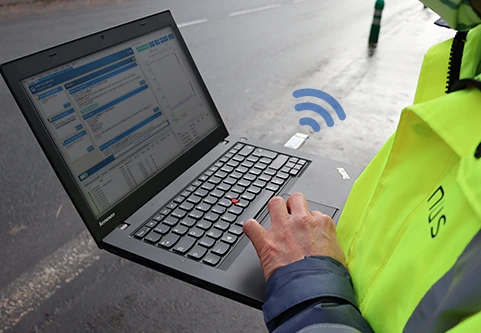

  • Work safely by staying away from your measuring points



This kit is an radio access point with internal antenna to connect to a PC, laptop or tablet with Windows OS and allows you to communicate by radio communication (RFID) to sensors and data logger, configure, retrieve, view and export data.

HF Communication with this USB stick

All sensors and loggers from Ijinus are RFID tagged. The USB stick is a radio access point and allows to connect quickly locally to them with security.
Just plug it to your computer by USB and open the software Avelour to connect to them

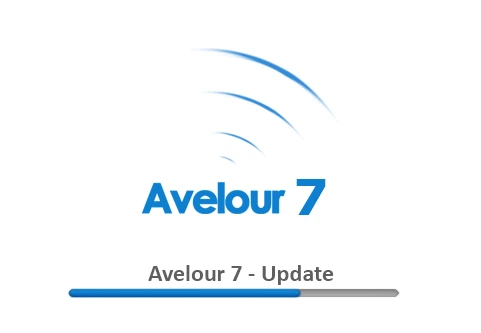

Avelour 7

AVELOUR is a software for the analysis and configuration of IJINUS products:  sensors, data loggers, concentrators, probes,…
It is the unique software for all environmental devices you want to program. It offers :

  • Intuitive interface that adapts itself to the connected device
  • The configuration is assisted step by step. Afterwards, you get a recapitulation summary.
  • Multi curves display of your data
  • Back-up are available for both data and settings
  • Compare different graphs from different sensors

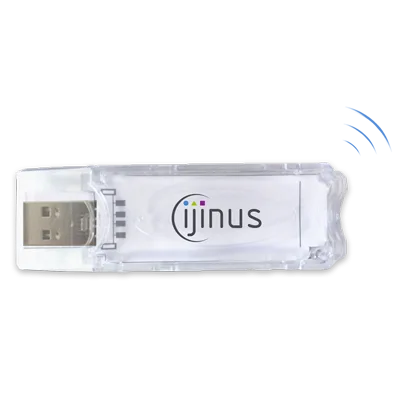

Configuration stick : Wiji USB-HF





Configuration kit applications

Environment

  • Water & wastewater
  • CSO monitoring
  • Remote level, flow, volume monitoring solutions
  • Flood warning systems



Configuration kit features

Programming kit USB/HF stick

Connector USB 1
Radio RSSI Yes
Radiated RF power 1…10mW (-30 … +10 dBm)
Transmission rate … 250 kbps
Sensibility -94 dbm
Operating temperature -20 … 70°C
Radio frequencies / part numbers 868MHz : WIJIKEY-8
915MHz : WIJIKEY-9

Dimensions

Dimensions 70 x 23 x 9mm
Weight 13g





Wiji-Key documentation
