Multi Applications, battery powered data loggers V4

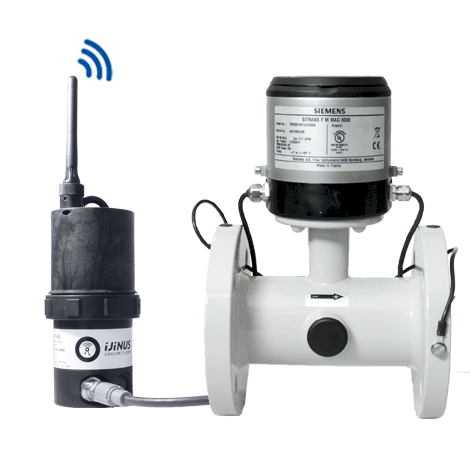

Logger V4 with communication by radio + 2G/3G or 2G/4GModbus or 4-20mA connection to flowmettersRadio communication on-site or remotely

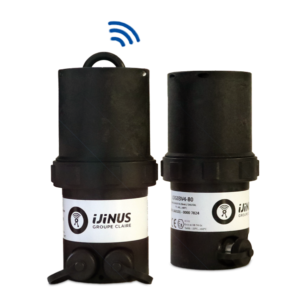

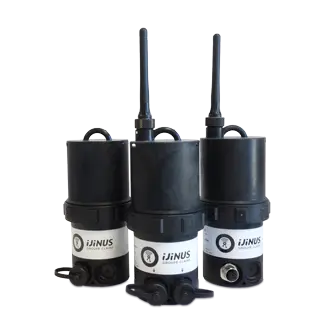

Wireless Data Logger LOG V4

111,111.00

  • Multi Applications data loggers
  • Wireless setting by radio (Wiji protocol)
  • Remote configuration
  • Communication : locale en radio + 1x optional communication card:
    2G/3G or 2G/4G (LTE-M or NB-IoT)
  • Enhanced security: FTPs data encryption (TLS)
  • Greater autonomy, sealing grade IP68 (1 Bar/30 days)
  • Memory : 500 000 measures
  • Battery powered loggers
  • Sealing IP68

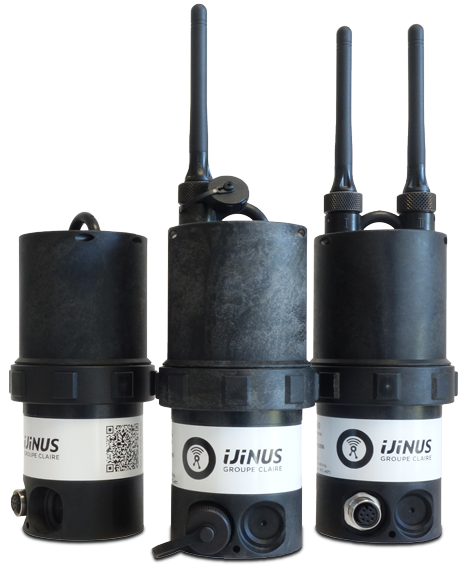

New generation of LOGGERS V4 for water network monitoring. Multi-application loggers, customisable to your needs

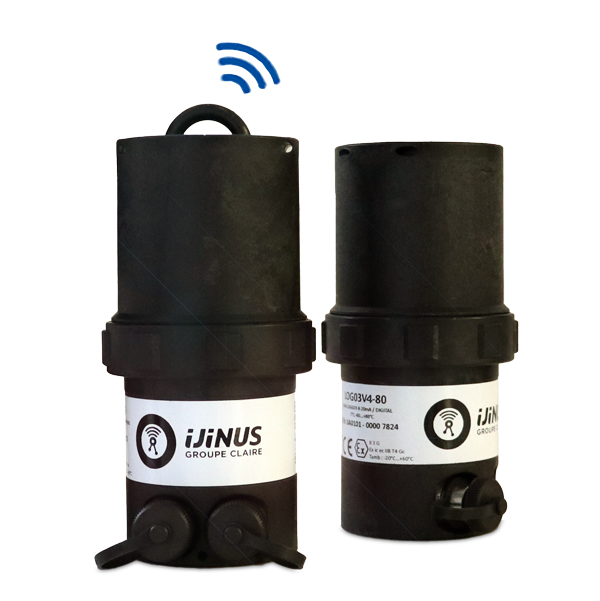

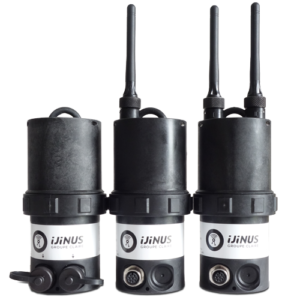

Wireless Data Loggers LOG V4

Ijinus introduces you its new range of Loggers that will adapt to all your applications. They are easy to install, robust and offer data communication options. Connected sensors are powered by the internal battery of the loggers, and for the more energy-consuming sensors by a battery pack. This brand new range of data loggers includes 5 models each with their own specialties:



New generation of LOGGERS V4 for water network monitoring - Ijinus

LOG03V4
4-20mA – DIGITAL

Groundwater resources
CSO / SSO
Flow using pressure probe
Smart water metering
Flow meter connection (Pulse)
Lift stations

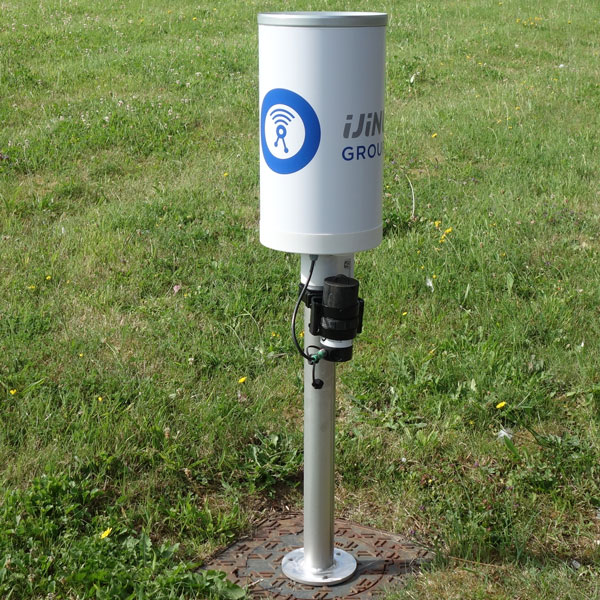

Rainfall
Acces point Hf/GPRS

LOG04V4
Modbus RS485 – DIGITAL

Area-Velocity Flow
CSO / SSO
Access point HF/Modbus/GPRS
Lift stations
Water quality
Rainfall

Flow meter connection (Pulse)

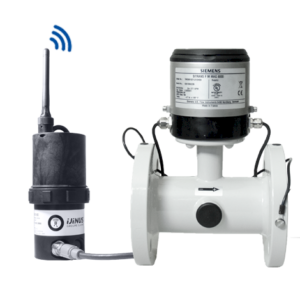

Electromagnetic flowmeter by Modbus

LOG09V4

4-20mA – Modbus RS485

Area-Velocity Flow
Water quality
Access point HF/GPRS

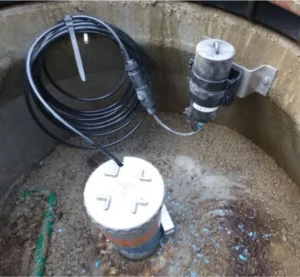

Flow using pressure probe
CSO / SSO
Lift station
Groundwater resources
Flow using pressure probe

Electromagnetic flowmeter by Modbus

LOG10V4

RS485 / Digital inputs / External ultrasonic probe

Area-Velocity Flow
CSO / SSO
Access point HF/Modbus/GPRS
Lift station
Water quality
Rainfall
LP025V4

Logger with Int. pressure sensor 0-25 bars + Modbus

Pressure control on fire hydrant
Pressure control on water network
Water network sectorization
RS485 Modbus Input/Output
2 counter inputs
1 open drain output

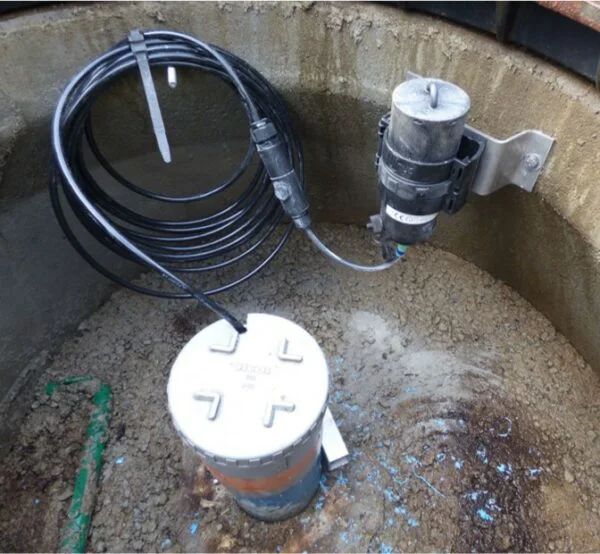

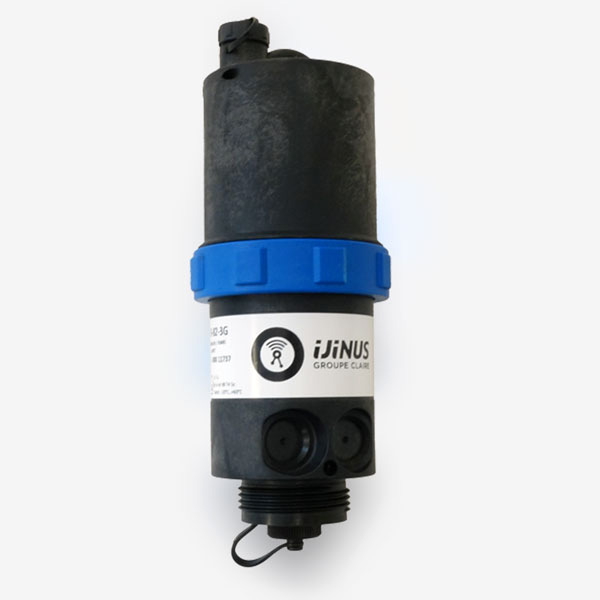

Wireless data logger LOG9V4 - radio / GPRS communication
Wireless data logger LOG10v4 - radio / GPRS communication HF/3G Ijinus LOG10v4

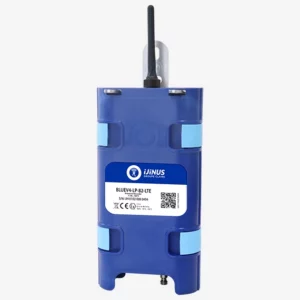

Datalogger LP025V4 with internal pressure sensor 0-25 bars + Radio/3G/4G Ijinus LP025V4

Wireless Setting

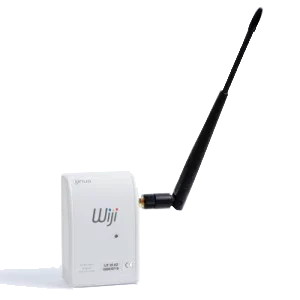

Configuration of the loggers and data analysis are done locally and safely by radio (RFID) using one of our programming kit to connect to PC or tablet. It includes the software Avelour 6

Logger with or without modem

HF communication for your local measurement campaigns and SMS / GPRS for remote monitoring management on www.ijitrack.com or on your own server

Ultra low power: 5 years autonomy

Energy is integrated into the sensor: lithium batteries are replaceable and lasts more than 5 years for 1 measurement / 15min and 1 data sending per day + alerts

Analysing and exporting your data

Easily compare different data, apply conversions and formulas if needed, and export results







Types of applications for LOGV4 data loggers

FLOOD MONITORING | PLUVIOMETRY | METERING | WATER PRESSURE | SECTORIZATION | PIEZOMETRY
FLOWMETERING | PHYSICOCHEMISTRY | H2S MEASUREMENT | SEWERS MONITORING | PERMANENT DIAGNOSIS OF WATER NETWORKS



Wireless Data Loggers LOG V4



Data loggers LOG V4 features

Data logger 500 000 measures
Radio access point Yes
Radio communication 100M in its wireless range (Wiji protocol)
Radio / cellular Antenna Internal or external radio antenna – External for cellular antenna. See configurator for options on datasheets
Operating temperature
-40 …85°C
Logger Housing PA12
Sealing IP68 1 bar during 30 days (Only if an Ijinus bracket is used ; PN : H0T00053 or H0T00060)
Energy
Lithium Bat : 3,6V 34Ah
Configuration
Radio/USB configuration kit (PN : M0C0000x) includes the software AVELOUR, and futures updades

Logger LOG03V4

Inputs: 1x voltage input (5V…30V), 2x 4-20 mA inputs, 2x digital/counter inputs
Outputs: Radio HF (868 MHz or 915 MHz) : Wiji protocol +
2G/3G or 2G/4G (LTE-M/NB-IoT)
1x voltage output 5V…18V (2W max with internal battery) or Switch Vin, 1x open drain output

Logger LOG04V4

Inputs: 1x voltage input (5V…30V), 1x Modbus input, 2x digital inputs,
Outputs: Radio HF (868 MHz or 915 MHz) : Wiji protocol +
2G/3G or 2G/4G (LTE-M/NB-IoT)
1x voltage output (5V…18V), 1x open drain output, 1x Modbus output (If not already used as input)

Logger LOG09V4

Inputs: 1x power supply(5V…30V), 1x Modbus input (If not already used as output), 2x 4-20 mA inputs
Outputs: Radio HF (868 MHz or 915 MHz) : Wiji protocol +
2G/3G or 2G/4G (LTE-M/NB-IoT)
1x voltage output(5V-18V internal battery or switch Vin=Vout), 1x open drain output, 1x Modbus output (If not already used as input)

Dimensions :

dimensions Ø 74 x 160mm (W/O antenna)
Weight 579g including battery





LOG03V4
LOG04V4

Dimensions logger LOG03V4 & LOG04V4





LOG09V4

Dimensions logger LOG09V4





LOG10V4

Dimensions logger LOG10V4

Logger LOG10V4

Inputs: 1x power supply (5V…30V), 1x US probe input, 2x digital inputs, 1x RS-485 interface (Modbus compatible)
Outputs: Radio HF (868 MHz or 915 MHz) : Wiji protocol +
2G/3G or 2G/4G (LTE-M/NB-IoT)
1x voltage output (5V-18V) or Switch Vin, 1x digital output (open drain)
