Add cellular data connectivity

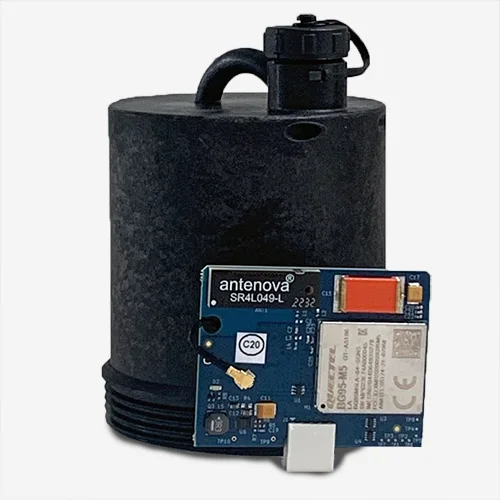

2G / 4G conversion kit for V4 loggers

This conversion kit includes:

  • V4 logger cover with its connector for an external antenna
  • Electronic daughterboard equipped with 2G/4G(LTE/NB-IOT) modem
  • 1x O-ring
  • Wire linking the cover to the communication board
  • 2x Desiccant bags

V4 loggers that operate solely via radio communication and therefore do not have a modem board can be equipped with a 2G/4G communication board simply by installing the conversion kit.
V4 series loggers already equipped with a LoRa communication board are also compatible. Simply swap the communication board

2G – 4G modem card kit

2G/4G Data connectivity add-on for data logger with either radio-only or radio/LoRa communication. Designed to transition to a 2G/4G communication card for remote data transmission.
This kit includes a mounting bracket that allows the two cards to be clipped together. Depending on the type of installation (underground or overhead), a suitable external antenna must be selected. You can easily mount yourself that kit on the field on a dry place.



2G/4G modem frequency bands
LTE-FDD Cat M1: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/B66/ B71/B85
GSM/EDGE 850/900/ 1800/1900 MHz
B1 (2100) / B2 (1900) / B3 (1800) / B4 (1700) / B5 (850) / B8 (900) / B9 (1800) / B12 (700) / B13 (700) / B18 (800) / B19 (800) / B20 (800) / B25 (1900) / B26 (850) /B27 (850) / B28 (700) / B66 (1700) / B71 (600) / B85 (700)





conversion kit 2G/4G documentation



Icon

DATA SHEET - 2G/4G conversion kit for V4 loggers

1 file(s) 474.06 KB
Download
