NODE LM Biocapteur – Wastewater quality and toxicity

Hydreka’s NODE LM biosensor: real-time monitoring of wastewater quality. This innovative solution is designed for continuous water quality monitoring in wastewater networks. It uses naturally occurring bacteria in effluents as bio-indicators to rapidly detect variations in organic load and the potential presence of toxic substances.
Thanks to its patented, flexible and self-cleaning design, the NODE LM minimises the sticking of wipes and other waste.

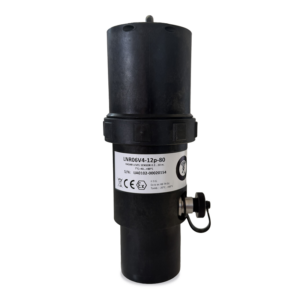

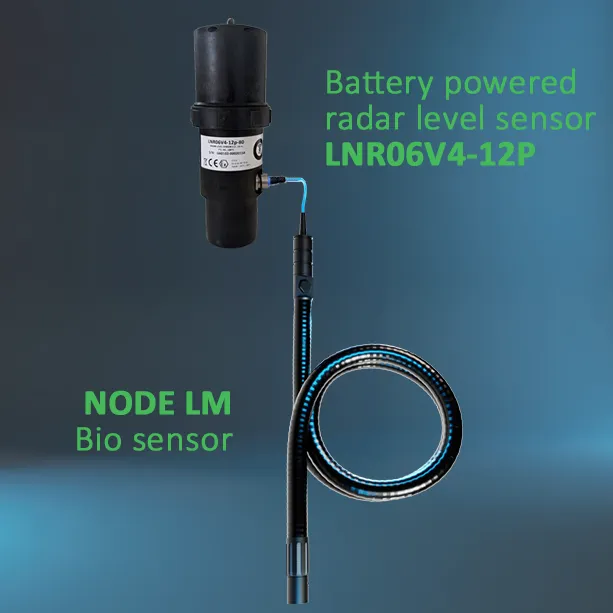

Compatible with the LNR06V4-12P water level radar sensor to associate other types of data (rain, infiltration, etc.)
Also compatible with the LOG03V4 data logger
The NODE LM addresses, in particular, the needs of continuous diagnosis of sanitation networks, sectorization and identification of the origin of discharges, …

Specifications of the Node LM bio-sensor

Biosensor using indigenous bacteria as indicators

Features
Method of analysis	Microbial activity
Analog sensor	Differential measurement of the voltages across a resistor connecting two electrodes
Output signal	mV or mA
Expected range	Version mV : 0 – 100 mV Version 4-20mA : -10 up to +400mV
Power supply range	mV version: None 4-20mA version: +9VDC to +28VDC

Applications
Environments	Domestic and industrial sanitation
Variation in organic load	Relative signal (mV or mA)
Toxicity	Relative signal (mV or mA)
Calibration

Biocapteur
Diameter	30 mm
Length / weight	1,70 m / 1,5 Kg 2,70 m / 1,85 Kg 3,70 m / 2,20 Kg
Main materials	Plastic polymers, Carbon, Titanium
Cable Length	2 or 10m
Wiring	Bare wires, DTU2, OptiFLO, M12 8Pts (LOG03V4) or M12 12Pts (Radar sensor LNR06V4-12P)
Certificates	ROHS, CE
Waranty	12 months

Exigences
Reagents	None
Consommables	screw-on cathode module and vent
Maintenance / Cleaning	Basic manual cleaning
Maintenance/cleaning time	< 5 min
