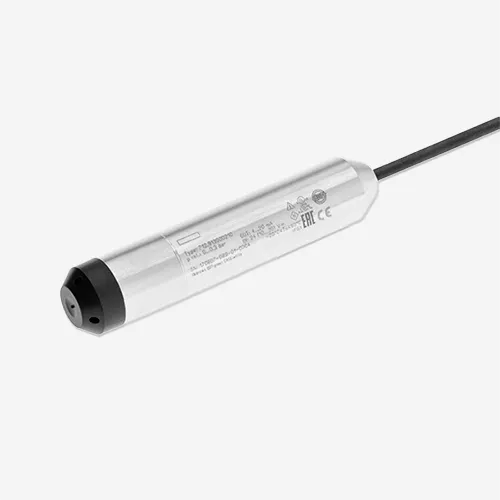

CNRB-EP water level sensors features
CNRB-EP-03-15 |
|
| Water level measuring ranges | 0-3mH2O |
| Pressure type | Relative |
| Permissible overload | 3 bar |
| Accuracy (maximum variation at 25 ºC) | ± 0,8 % EM |
| Cable | Length of 15m |
CNRB-EP-10-20 |
|
| Level measuring ranges | 0-10mH2O |
| Pressure type | Relative |
| Permissible overload | 3 bar |
| Accuracy (maximum variation at 25 ºC) | ± 0,8 % EM |
| Cable | Length of 20m |
CNRB-EP-25-30 |
|
| Level measuring ranges | 0-25mH2O |
| Pressure type | Relative |
| Permissible overload | 7,5 bar |
| Accuracy (maximum variation at 25 ºC) | ± 0,8 % EM |
| Cable | Length of 30m |
Common features |
|
| Certifications | CE / ROHS / ACS |
| Fluid | Drinking water, water |
| Output signal Supply voltage |
4-20mA Min 10 – Max 30VDC |
| Ambient and liquid temperature Storage temperature |
-20 … 80°C -40 … 80°C |
Materials |
|
| Body Internal seal Cell Cable Protective cap |
Stainless steel 1.4404 / AISI 316L EPDM Ceramic Al2O3 PE-HD with integrated capillary PPE |
| Connector | M12 12Pts |
| Dimensions | Ø23,4 x 116mm |
| Weight without cable | ~ 200g |
| Atmospheric pressure vent | Integrated : Ø28MM LG80MM E/S M16x1.5 and M20 x 1.5 |

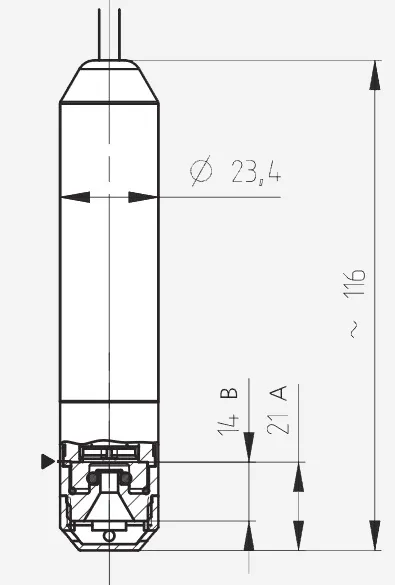

Dimensional drawing |
|
