Pressure sensor 0-16 bar for Blue loggers

Pressure sensor 0-16 bar CPAB-EP-16 for Blue loggers

  • Measuring range 0-16 bar
  • 4-20mA output signal
  • Compact design, M12 12Pts connectorized cable
  • Available in 1.5M or 20M cable versions
  • Water-resistant sensor: IP68
  • Compatible with Blue-LP / Blue loggers
  • ACS-certified product: suitable for drinking water

The 0-16 bar pressure sensor is easy to install thanks to its 1/4 gas connection. The Blue and Blue-LP loggers for drinking water applications are connected via its 12-pin M12 connector. Configuration is carried out locally by radio by connecting to the logger. For data loggers fitted with an integrated communication card, data are sent automatically by 2G/4G (LTE-M, NB-IoT) to our web platform Ijitrack.com, or to your server/SCADA software.

CPAB-EP-16 water pressure sensor features

Sensors specifications
CPAB-EP-16-1.5 sensor Version with 1,5M cable length
CPAB-EP-16-20 sensor Version with 20M cable length
Measuring range 0-16 bar
Pressure type Absolute
Accuracy ± 0.5 % FS
Resolution 0.1% EM @20°C
Certification CE / ROHS / ACS
Fluid Water, drinking water
Output signal
Power supply voltage		 4-20 mA
Min 11 – Max 28VDC
Operation temperature / storage temperature -20 … 80°C / -20… 85°C
Sealing IP68(2M H2O) 2 weeks
Housing
Isolated diaphragm
Cable		 Stainless steel (SS 304)
Stainless steel (SS 316L)
PUR
Dimensions Ø27 x 100 mm
Connector M12 12Pts
Weight ~ 360g with 1.5M cable

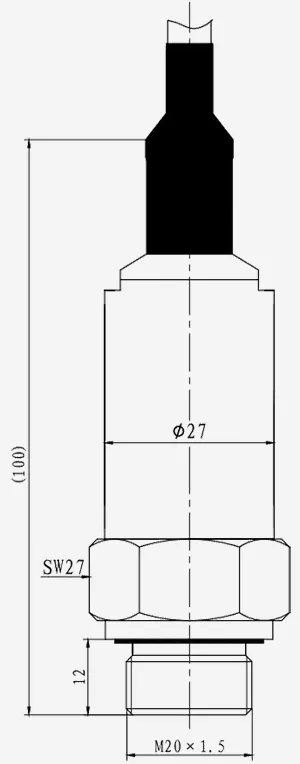

Dimension plan

CPAB-EP-16 water pressure sensor dimensions





CPAB-EP-16 documentation

Icon

Datasheet_CPAB-EP-16-1.5 pressure sensor 0...16 bar - ACS for Blue loggers

1 file(s) 197.46 KB
Download



Icon

Blue logger User Guide

1 file(s) 4.61 MB
Download
