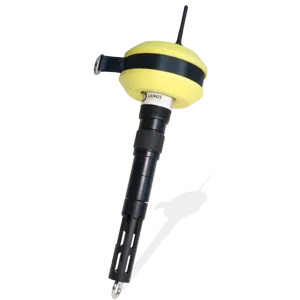

BANV4 : Instrumented buoys with radio & 4G communication
DISOLVED OXYGEN / TEMPERATURE : Optical technology based on luminescent optical technology. This sensor is approved by the ASTM International Method D888-05. Accurate measures in all situations and especially in very low oxygen concentrations. Body in Stainless steel or TITANIUM.
PH / ORP / TEMPERATURE : Digital technology, combined electrodes, calibration data inside the sensor.
CONDUCTIVITY / SALINITY / TEMPERATURE : The electrode works with a technology in 4 electrodes: an alterning current of constant-voltage is established between a primary’s pair of electrodes in graphite. The secondary’s electrodes in platinum allow of regulate the voltage imposed to primary’s electrodes to reflect of the fouling. The voltage measured between the primary’s electrodes is in function of the resistance of place and so, of the conductivity.
TURBIDITY / TEMPERATURE : The measure principle is based on infra-red nephelometry / 850 nm. The sensor can be calibrated with a formazin standard solution. The NTU sensor integrates a low-cost optical technology, with a very few maintenance and no consumables.
The headset is a radio transceiver to connect via USB to a computer. It allows secure direct radio connection (our Wiji protocol) with RFID to the buoys, to configure and retrieve data locally. This programming kit includes our configuration and analysis software Avelour
Remote data monitoring by 2G / 3G or 2G / 4G (LTE-M / NB-IoT)
The buoys can also send automatically data remotely if you choose the internal modem communication card option.The integrated data logger can retrieve data by radio from other buoys nearby and send them via GSM / GPRS to a SCADA or our web monitoring software Ijitrack.com.
