buoys with logger, battery and communication

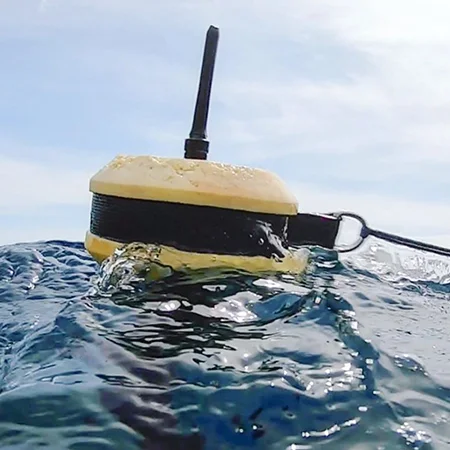

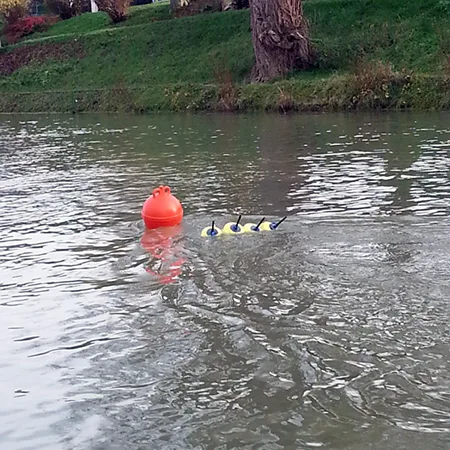

Instrumented buoys with radio / 2G / 4G communicationBuoys with water quality sensorSome Instrumented buoys installed on a river

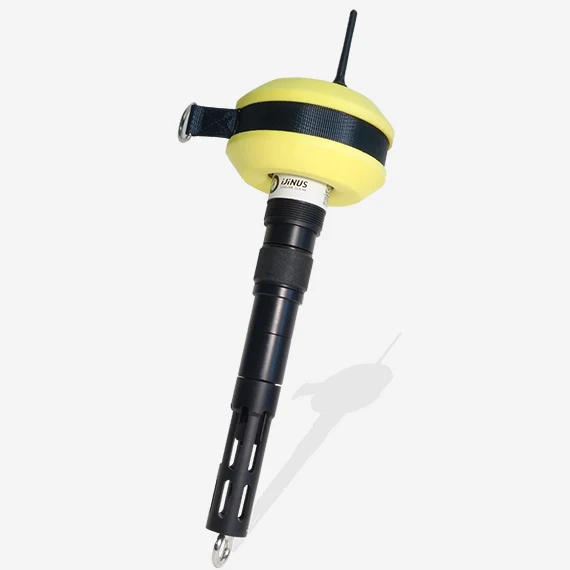

Battery powered Instrumented buoys

Instrumented Buoys with radio and optional 2G/4G communication for lakes, rivers and seawater. The complete integrated solution for on-site or remote water quality monitoring

  • Compact and self-stable buoy
  • Digital technology for optimized measurement
  • Retrieving data by radio on-site and/or remotely with 2G/4G (LTE-M / NB-IoT)
  • Integrated GSM option for monitoring data by internet or supervision
  • All in one solution water quality sensor, logger, modem

Available sensors :

  • Conductivity / Salinity / Temperature : BANV4-CE
  • pH / Redox / Temperature  : BANV4-PH
  •  02 / Temperature : BANV4-OX
  • Turbidity NTU-mg / l / Temperature : BANV4-TU



BANV4 : Instrumented buoys with radio & 4G communication

DISOLVED OXYGEN / TEMPERATURE : Optical technology based on luminescent optical technology. This sensor is approved by the ASTM International Method D888-05. Accurate measures in all situations and especially in very low oxygen concentrations. Body in Stainless steel or TITANIUM.

PH / ORP / TEMPERATURE : Digital technology, combined electrodes, calibration data inside the sensor.

CONDUCTIVITY / SALINITY / TEMPERATURE : The electrode works with a technology in 4 electrodes: an alterning current of constant-voltage is established between a primary’s pair of electrodes in graphite. The secondary’s electrodes in platinum allow of regulate the voltage imposed to primary’s electrodes to reflect of the fouling. The voltage measured between the primary’s electrodes is in function of the resistance of place and so, of the conductivity.

liste_arrow TURBIDITY / TEMPERATURE : The measure principle is based on infra-red nephelometry / 850 nm. The sensor can be calibrated with a formazin standard solution. The NTU sensor integrates a low-cost optical technology, with a very few maintenance and no consumables.

Radio communication

The headset is a radio transceiver to connect via USB to a computer. It allows secure direct radio connection (our Wiji protocol) with RFID to the buoys, to configure and retrieve data locally. This programming kit includes our configuration and analysis software Avelour

Remote data monitoring by 2G / 4G (LTE-M / NB-IoT)

The buoys can also send automatically data remotely if you choose the internal modem communication card option.The integrated data logger can retrieve data by radio from other buoys nearby and send them via GSM / GPRS to a SCADA or our web monitoring software Ijitrack.com.

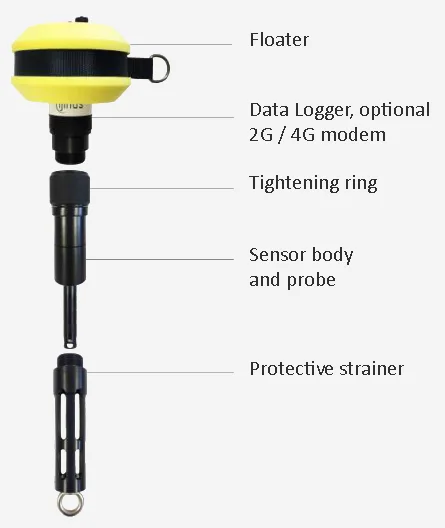

Instrumented-Buoy-4G



BANV4 : Instrumented buoy applications

  • Waste water
  • Treatment of industrial effluents
  • Natural water monitoring



BANV4 : Instrumented buoys features

Features

Datalogger
500.000 Measures
Radio access point Yes
HF antenna Internal ou External depending on model
Input Modbus RS485
Option GSM antenna
External on GSM/GPRS models
Operating temperature -40 …85°C
housing ABS 20%FV
Sealing IP68
Energy Bat : 3,6V 34Ah
Autonomy Up to 4 years
Configuration – AVELOUR software using RFID wireless connection
– USB/RS485 Converter module for calibration
ATEX certification II 3G Ex ic nA IIB T4 Gc
Tamb : -20°C…+60°C
Certification : CE/FCC/IC FCC: SE6A001 – IC: 10983A-A001
Buoyancy volume 2L

Dimensions

Dimensions Ø 160 x 580mm (with external antenna)
Weight including batteries 1Kg

Instrumented Buoys dimensions



BANV4 : Instrumented buoys documentation
