Antenna for Ijinus sensors and loggers

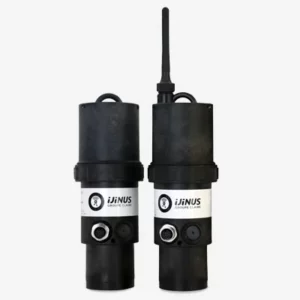

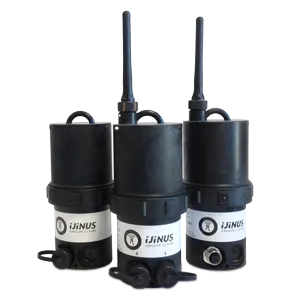

Ijinus LOG V4 data loggersLNR06V4-LTE radar level sensor with antennaLNR06V4-LTE level sensor install

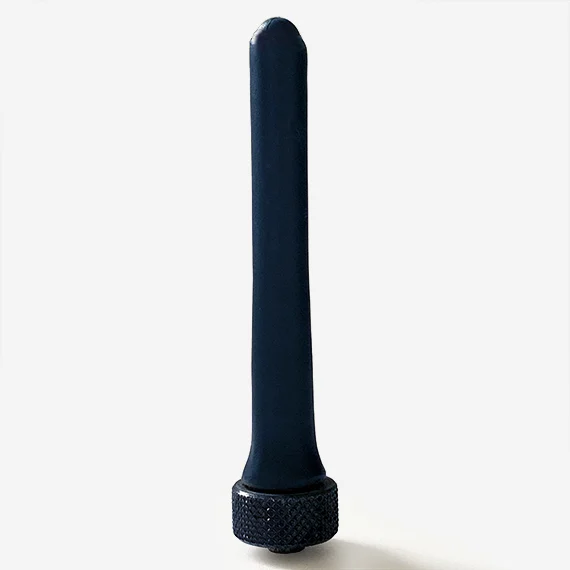

Cellular external antenna B0E00109

  • GSM antenna EU/US 850-900/1800/1900MHZ
  • To be used outside, not in manhole location closed with metal cover
  • Compatible with Ijinus level sensors LNU06V4 and LNR06V4
  • Compatible with Ijinus dataloggers LOG V4, LOGAZ, BLUE and BLUE-LP loggers
  • Protection IP66
  • Compact antenna size 19 x 91,5 mm

Antenna to fix on the top lid connector and tighten the Inox nut.
Other length and type of antenna are also available like a 2m external antenna to be used under metal manhole cover.

GSM external antenna for Ijinus sensors and loggers



Features antenna
Type of antenna Omnidirectional
Frequencies 850 / 900 / 1800 / 1900 MHz
Connector SMB
Gain 0 dBi
Working temperature -20°C to +65°C
Protections (connected) IP66, Inox tightening nut
Dimensions Ø 19 x 91,5 mm
Weight 97 g including nut
tightening nut Inox

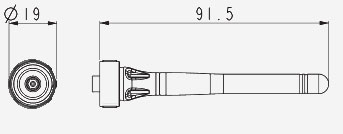

B0E00109 antenne dimensions





Documentation cellular antenna B0E00109



Icon

Datasheet_B0E00109_GSM External antenna

1 file(s) 136.41 KB
Download
