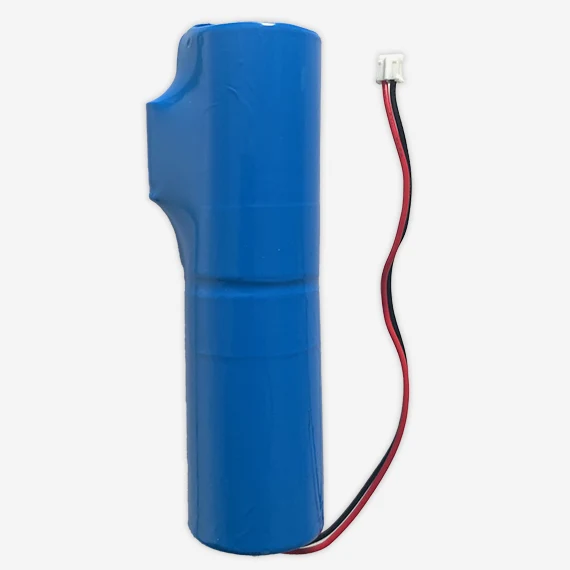

These A0G000030 batteries can also be found in the A0I battery packs
Battery features |
|
| Battery type | Lithium D type |
| Package | 2x type D non-rechargeable Lithium batteries 3.6V / 40Ah+ Supercap |
| Connection | 15cm wire with a 2pts JST connector |
| Net weight | 0.21Kg |
| Dimensions | Size approximately 120 mm (123 mm maximum)max width 45mm, Ø 35mm |
Unscrew the ring almost all the way, which will allow you to lift the top cover off the sensor safely. Then unscrew it completely and remove the cover. Unplug the battery connector and remove the battery.
Take the opportunity to check the condition of the desiccant bag, which will need replacing if it turns green.
Replace the old battery with a new one, then put the cover back on as far as it will go. Make sure the notch is correctly positioned.
Screw the clamping ring back on tightly.
