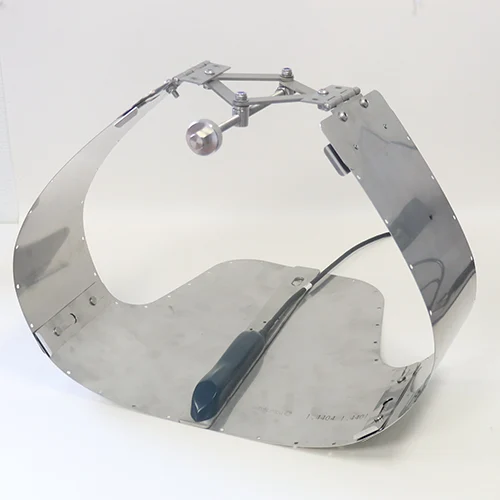

Adjustable ring for area velocity sensors

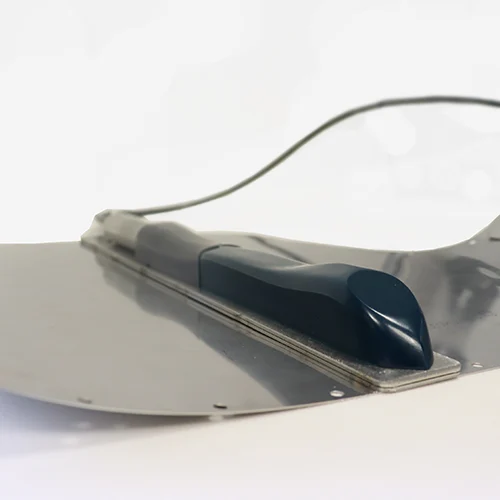

Sensor support plate for VLI or UB-V sensorsThe scissors can be adjusted by hand or a 13mm spannerFor area velocity and velocity sensors

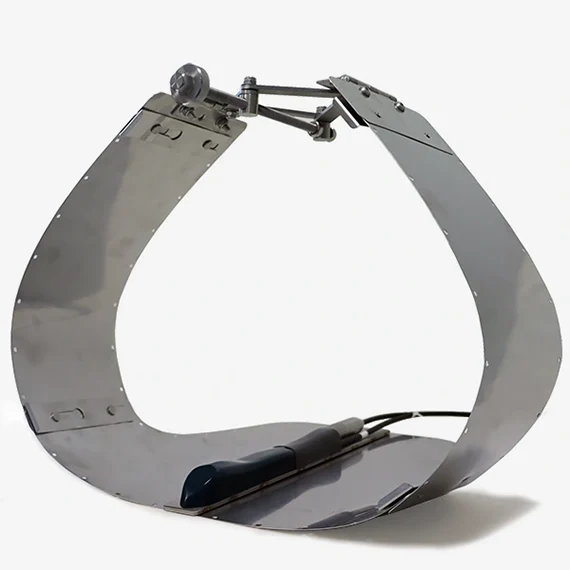

Adjustable ring for velocity & area velocity sensors

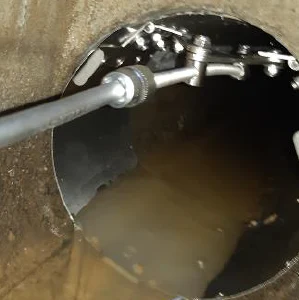

  • Sewer flow meter mounting ring
  • Main mounting ring kit for 180 mm up to 600 mm diameter pipe
  • Mounting kit extension for 600 mm up to 1000 mm diameter pipe
  • Compatible with ISCO VLI area velocity sensor, and UB-V4 velocity sensor mounted with its level sensor CNR0903-UBV-10
  • Compatible UB-V4 Doppler velocity sensor
  • Quick and easy to install
  • The scissors can be adjusted by hand using the knob, or with a 13mm spanner.

Adjustable mounting ring and extension kit description

Required plates assembly depending on pipe diameter

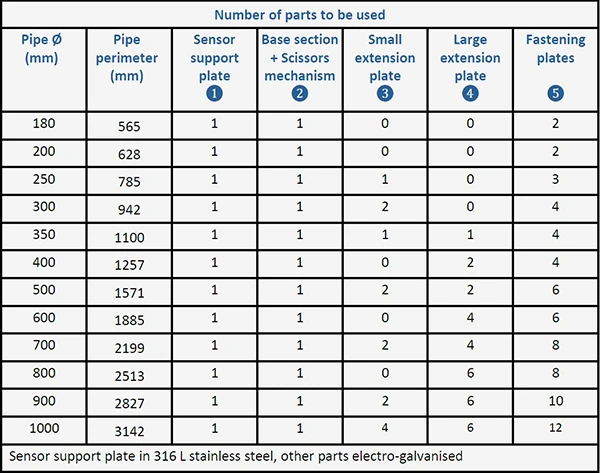

Number of parts to use

Required adjustable mounting hardware parts

316 L stainless steel sensor support plate, electro-galvanised steel for other parts

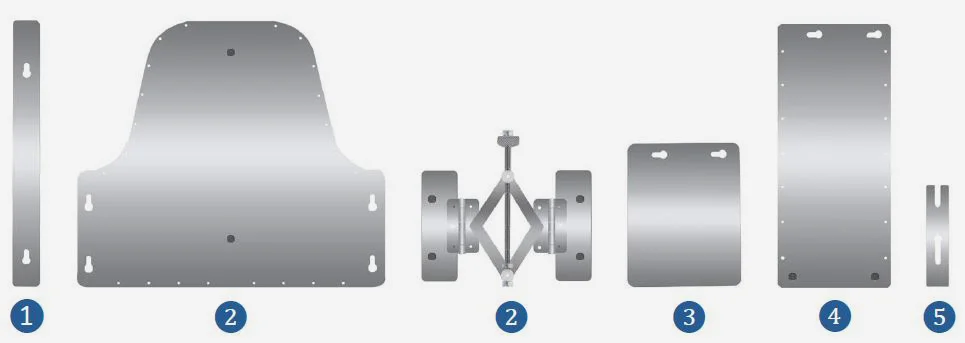

The different parts of the scissor ring and its extension



Composition of the standard pack and its extension



Adjustable ring Ø 180mm to 600mm
CQS-HV-1016

CQS-HV-1019 1x Sensor support plate
CQS-HV-1017 1x Base section
CQS-HV-1022 Scissors mechanism for VLI/UB-V sensors
CQS-HV-1021 2x Small extension plates
CQS-HV-1020 4x Large extension plates
CQS-HV-1018 6x Fastening plates



Extension kit Ø 600mm to 1000mm – CQS-HV-1023

CQS-HV-1021 2x Small extension plates
CQS-HV-1020 2x Large extension plates
CQS-HV-1018 6x Fastening plates



Data sheet CQS-HV-1016
